SignalTEK QT

New 10G Qualification Tester for Copper, Fiber, and Wi‑Fi

PRODUCT DATA

PRODUCT CATEGORY

Profinet > Network monitoring


AREA


SignalTEK QT

PRODUCT DESCRIPTION

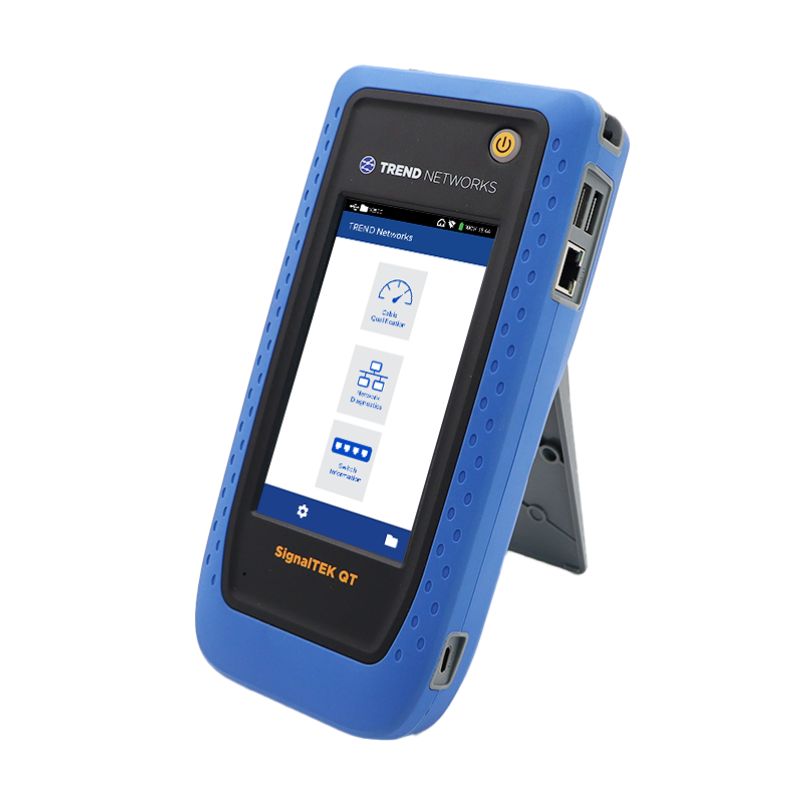

The new SignalTEK QT series from TREND Networks is a 10G qualification tester designed to measure the actual performance of copper, fiber, and Wi‑Fi links. It combines fast execution, ease of use, and cloud connectivity to simplify the workflow of installers, system integrators, and network technicians.


With SignalTEK QT, you can:

  • Qualify copper cabling up to 10 Gb/s, measuring key parameters such as NEXT (crosstalk), Return Loss (reflection), and Insertion Loss (attenuation)
  • Verify fiber links up to 100 Gb/s (QT Pro only), using loopback testing and TREND SFP modules
  • Analyze Wi‑Fi networks, detecting congestion, channel overlap, and rogue access points
  • All functions are integrated into a single device with advanced project and result management via TREND AnyWARE Cloud.


Key Features

Copper Qualification (up to 10 Gb/s)

  • Frequency sweep up to 400 MHz
  • Measures NEXT, Return Loss, and Insertion Loss
  • Supports Multi-Gigabit speeds: 2.5G / 5G / 10G
  • Compatible with up to 12 passive remote units
  • Delivers results in about 5 seconds


Fiber Qualification (QT Pro only)

  • Tests to IEEE 802.3 standards up to 100 Gb/s
  • Loopback verification with TREND SFP modules


Wi‑Fi Analysis (QT Pro only)

  • Coverage and congestion visualization
  • Detection of overlapping channels and unauthorized access points
  • Built-in diagnostics: ping, traceroute, device discovery
  • Cloud Integration with TREND AnyWARE


SignalTEK QT is fully integrated with TREND AnyWARE Cloud, allowing users to:

  • Create and configure projects remotely
  • Sync test results automatically
  • Access and share reports in real time, even with the end customer
  • Connect via the tester’s Wi‑Fi or Ethernet interface


Why Choose SignalTEK QT

  • Reduces rework and time on site
  • Combines copper, fiber, and Wi‑Fi testing in one device
  • Delivers fast, accurate measurements up to 10G
  • Generates professional reports to certify installations
  • Ideal upgrade path for users of SignalTEK CT/NT or NaviTEK (Trade‑Up promotion available)
