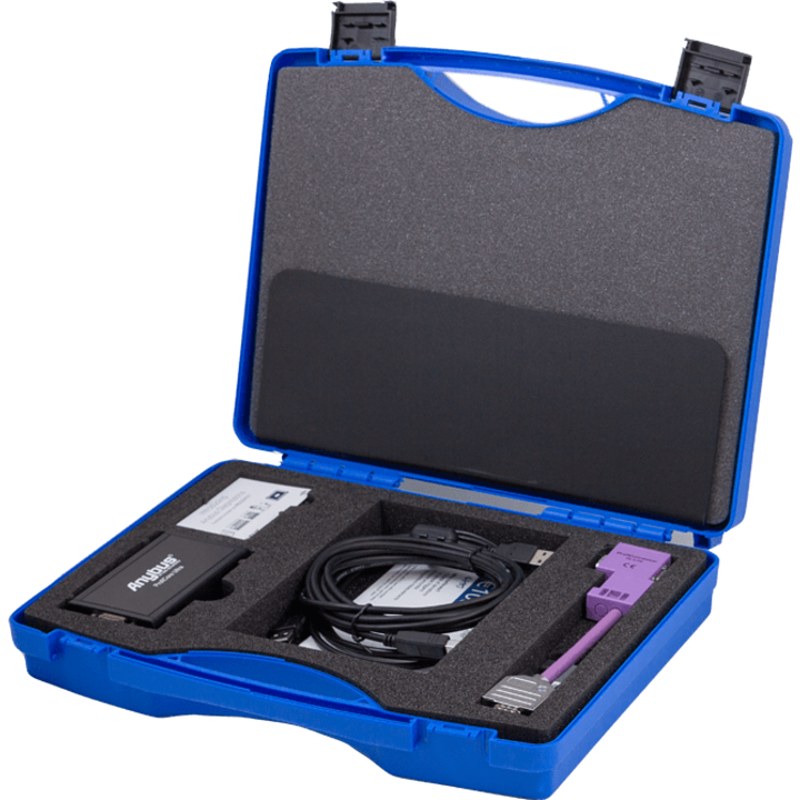

Anybus ProfiTrace Toolkit Pro

Anybus ProfiTrace Toolkit Pro is the portable kit for maintaining and troubleshooting PROFIBUS networks. It is built on the ProfiCore hardware, which is compact and ready to use with just two connections. Measurements are taken directly on the running plant, with no need to shut down the network.

Once connected, it lets you check and measure the entire installation, on both PROFIBUS DP and PA segments. All analyses are compiled into a detailed report that includes the signals of all devices, detected errors, network topology, bar graphs and administrative information.

Why use it
ProfiTrace Toolkit Pro is ideal for:

• detecting and solving faults while production is running;
• taking measurements without stopping the network;
• analyzing PROFIBUS DP and PA segments;
• getting a complete overview of the installation;
• documenting network status with detailed reports;
• planning maintenance work based on measured data.

Main features

• Portable ProfiCore hardware, ready to use with 2 connections
• Live network measurements, with no plant downtime
• Analysis of PROFIBUS DP and PA segments
• Check and measurement of the entire installation
• Reports with signals, errors, network topology and bar graphs
• USB-powered (5 V)
• Carrying case included
